Today, businesses are becoming more and more demanding, because industrial products must both meet companies' need to reduce development costs and must also be available quickly.
So only flexible suppliers who are close to their customers are able to meet their expectations.

On a daily basis, Microprecision Electronics SA, in close collaboration with its customers, is developing tailored solutions specifically designed to solve their problems. Inside gear units or integrated into screw jacks, our microswitches are manufactured to suit their particular use and their final position. this is why MAYR GmbH, a brake manufactureer, for ecample has chosen us to detect wear on its products.

MP100/110 MP200
Switch rating 400VAC 10A 250VAC 10A (2X5A)
CSA 6A 250V AC / CSA 0.5A 125V DC
Standard EN 61058-1:92 + A1.93 50E3 EN 61058-1:92 + A1.93 50E3
CSA C22.2 CSA No 288848
Degree of protection IP67 IP67/ 68
Terminal Plug in socket cable PVC / PUR / SI
cable PVC / PUR / SI
 Connector AS-I
Temperature - 40°C to +130°C
- 40°F to +266°F		 - 40°C to +130°C
- 40°F to +266°F
Switching Diagram change over change over / Off-On / general circuit
Mechanism Snap-action Snap-action
Mechanical life 50x106 50x106
Dimensions 49x21.5x17.5 mm / 1.93x0.85x0.69 in
DIN 41 635 Form EF		 49x35x17.5 mm / 1.93x1.38x0.69 in
DIN 41 635 Form E
Gold Contact yes yes

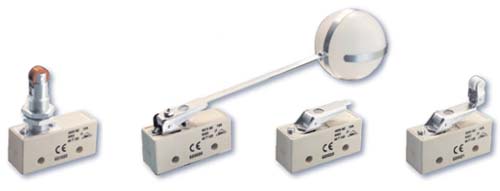

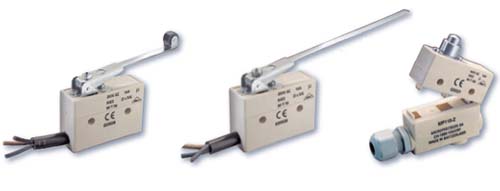

A precision microswitch for high breaking capacity, with moulded cables or plug-in connectors, protection class IP67, or even IP68.
